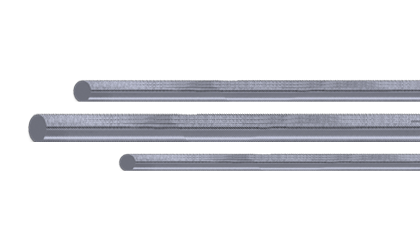

Straight wire - stainless steel
The straight spring wire we have in stock is made of stainless steel. If you need this kind of wire in music wire, or in different lengths, please contact us at [email protected].
Shop By
Shopping Options
| View prices - Add to Cart | Material | d Wire diameter (in) |
L0 Unloaded length (in) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|
| Stainless steel 302 | 0.0276 | 39.3701 | RET3000 |
|
|||||
| Stainless steel 302 | 0.0295 | 39.3701 | RET3004 |
|
|||||
| Stainless steel 302 | 0.0315 | 39.3701 | RET3008 |
|
|||||
| Stainless steel 302 | 0.0354 | 39.3701 | RET3012 |
|
|||||
| Stainless steel 302 | 0.0394 | 39.3701 | RET3016 |
|
|||||
| Stainless steel 302 | 0.0433 | 39.3701 | RET3020 |
|
|||||
| Stainless steel 302 | 0.0472 | 39.3701 | RET3024 |
|
|||||
| Stainless steel 302 | 0.0492 | 39.3701 | RET3028 |
|
|||||
| Stainless steel 302 | 0.0551 | 39.3701 | RET3032 |
|
|||||
| Stainless steel 302 | 0.0591 | 39.3701 | RET3036 |
|
- RET3000In stock: 123
Material Stainless steel 302d - Wire diameter (in) 0.0276L0 - Unloaded length (in) 39.3701
- RET3004In stock: 85
Material Stainless steel 302d - Wire diameter (in) 0.0295L0 - Unloaded length (in) 39.3701
- RET3008In stock: 141
Material Stainless steel 302d - Wire diameter (in) 0.0315L0 - Unloaded length (in) 39.3701
- RET3012In stock: 64
Material Stainless steel 302d - Wire diameter (in) 0.0354L0 - Unloaded length (in) 39.3701
- RET3016In stock: 248
Material Stainless steel 302d - Wire diameter (in) 0.0394L0 - Unloaded length (in) 39.3701
- RET3020In stock: 66
Material Stainless steel 302d - Wire diameter (in) 0.0433L0 - Unloaded length (in) 39.3701
- RET3024In stock: 209
Material Stainless steel 302d - Wire diameter (in) 0.0472L0 - Unloaded length (in) 39.3701
- RET3028In stock: 141
Material Stainless steel 302d - Wire diameter (in) 0.0492L0 - Unloaded length (in) 39.3701
- RET3032In stock: 105
Material Stainless steel 302d - Wire diameter (in) 0.0551L0 - Unloaded length (in) 39.3701
- RET3036In stock: 81
Material Stainless steel 302d - Wire diameter (in) 0.0591L0 - Unloaded length (in) 39.3701
Material
DIN 17224 AISI 302 WERKSTOFF NO. 1.4310
Working temperature between -200 ºC and +250 ºC
Misc.
Straight spring wire is also available in other lengths. Contact Sodemann-Springs.US for more information.
