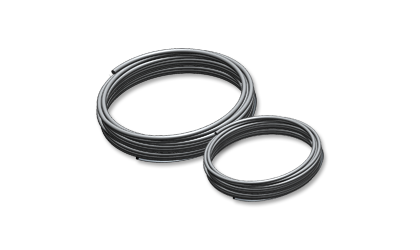

Wire Rolls - Spring Steel / Music Wire
We have 19 different sizes of wire bundled up in wire rolls. The same sizes are also available in stainless steel.
It is not possible to have a few meters cut of the rolls.
Shop By
Shopping Options
| View prices - Add to Cart | Material | d Wire diameter (in) |
Approx. meter / delivery (in) | Approx. Weight (oz) | SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|---|
| Music wire | 0.0079 | 15.9449 | 3.5274 | TR1000 |
|
|||||
| Music wire | 0.0118 | 7.0866 | 3.5274 | TR1004 |
|
|||||
| Music wire | 0.0157 | 3.9370 | 3.5274 | TR1008 |
|
|||||
| Music wire | 0.0197 | 2.5591 | 3.5274 | TR1012 |
|
|||||
| Music wire | 0.0236 | 4.4094 | 8.8185 | TR1016 |
|
|||||
| Music wire | 0.0276 | 11.8110 | 31.7466 | TR1020 |
|
|||||
| Music wire | 0.0315 | 10.6299 | 37.3904 | TR1024 |
|
|||||
| Music wire | 0.0394 | 6.6929 | 36.6849 | TR1028 |
|
|||||
| Music wire | 0.0492 | 4.8819 | 41.8349 | TR1032 |
|
|||||
| Music wire | 0.0591 | 3.7008 | 45.5034 | TR1036 |
|
- TR1000In stock: 6
Material Music wired - Wire diameter (in) 0.0079Approx. meter / delivery (in) 15.9449Approx. Weight (oz) 3.5274
- TR1004In stock: 7
Material Music wired - Wire diameter (in) 0.0118Approx. meter / delivery (in) 7.0866Approx. Weight (oz) 3.5274
- TR1008In stock: 15
Material Music wired - Wire diameter (in) 0.0157Approx. meter / delivery (in) 3.9370Approx. Weight (oz) 3.5274
- TR1012In stock: 9
Material Music wired - Wire diameter (in) 0.0197Approx. meter / delivery (in) 2.5591Approx. Weight (oz) 3.5274
- TR1016In stock: 4
Material Music wired - Wire diameter (in) 0.0236Approx. meter / delivery (in) 4.4094Approx. Weight (oz) 8.8185
- TR1020In stock: 7
Material Music wired - Wire diameter (in) 0.0276Approx. meter / delivery (in) 11.8110Approx. Weight (oz) 31.7466
- TR1024In stock: 8
Material Music wired - Wire diameter (in) 0.0315Approx. meter / delivery (in) 10.6299Approx. Weight (oz) 37.3904
- TR1028In stock: 13
Material Music wired - Wire diameter (in) 0.0394Approx. meter / delivery (in) 6.6929Approx. Weight (oz) 36.6849
- TR1032In stock: 12
Material Music wired - Wire diameter (in) 0.0492Approx. meter / delivery (in) 4.8819Approx. Weight (oz) 41.8349
- TR1036In stock: 5
Material Music wired - Wire diameter (in) 0.0591Approx. meter / delivery (in) 3.7008Approx. Weight (oz) 45.5034
Material
DIN 17223 C-Wire WERKSTOFF NO. 1.200
Working temperature between -30 ºC and +120 ºC
Misc.
Spring wire is also available in larger quantities. Contact Sodemann-Springs.US for more information.
