Hairpin spilts - Stainless steel
Hairpin cotter pins are often used as a safety mechanism by sticking the cotter pin in through a hole in a mandrel to ensure that the mandrel cannot become loose. We have two different series in stock. The difference is that in one series the loop is round and in the other it has a flat base. We have both series in stock, ready for dispatch!
This version is made in stainless steel. See also our selection in galvanized wire.
Shop By
Shopping Options

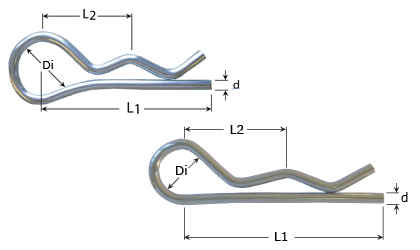

| View prices - Add to Cart | Material | d Wire diameter (in) |
Di Internal diameter (in) |
L1 Length (in) |
L2 Length (in) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stainless steel 302 | 0.0787 | 0.3543 | 1.1811 | 0.5906 | 89000RF |
|
|||||
| Stainless steel 302 | 0.0787 | 0.3740 | 1.4961 | 0.7087 | 89100RF |
|
|||||
| Stainless steel 302 | 0.0984 | 0.3740 | 1.4961 | 0.7087 | 89101RF |
|
|||||
| Stainless steel 302 | 0.1181 | 0.4331 | 1.9685 | 0.9055 | 89102RF |
|
|||||
| Stainless steel 302 | 0.1181 | 0.5118 | 2.3228 | 1.1417 | 89004RF |
|
|||||
| Stainless steel 302 | 0.1575 | 0.7480 | 2.3228 | 1.1417 | 89103RF |
|
|||||
| Stainless steel 302 | 0.1575 | 0.7480 | 2.4409 | 1.3386 | 89008RF |
|
|||||
| Stainless steel 302 | 0.1969 | 1.0236 | 3.1496 | 1.4961 | 89012RF |
|
|||||
| Stainless steel 302 | 0.1969 | 1.1417 | 3.3858 | 1.6929 | 89104RF |
|
|||||
| Stainless steel 302 | 0.2362 | 1.2205 | 4.0157 | 1.9685 | 89016RF |
|
- 89000RFIn stock: 1,088
Material Stainless steel 302d - Wire diameter (in) 0.0787Di - Internal diameter (in) 0.3543L1 - Length (in) 1.1811L2 - Length (in) 0.5906
- 89100RFIn stock: 31
Material Stainless steel 302d - Wire diameter (in) 0.0787Di - Internal diameter (in) 0.3740L1 - Length (in) 1.4961L2 - Length (in) 0.7087
- 89101RFIn stock: 87
Material Stainless steel 302d - Wire diameter (in) 0.0984Di - Internal diameter (in) 0.3740L1 - Length (in) 1.4961L2 - Length (in) 0.7087
- 89102RFIn stock: 87
Material Stainless steel 302d - Wire diameter (in) 0.1181Di - Internal diameter (in) 0.4331L1 - Length (in) 1.9685L2 - Length (in) 0.9055
- 89004RFIn stock: 980
Material Stainless steel 302d - Wire diameter (in) 0.1181Di - Internal diameter (in) 0.5118L1 - Length (in) 2.3228L2 - Length (in) 1.1417
- 89103RFIn stock: 49
Material Stainless steel 302d - Wire diameter (in) 0.1575Di - Internal diameter (in) 0.7480L1 - Length (in) 2.3228L2 - Length (in) 1.1417
- 89008RFIn stock: 157
Material Stainless steel 302d - Wire diameter (in) 0.1575Di - Internal diameter (in) 0.7480L1 - Length (in) 2.4409L2 - Length (in) 1.3386
- 89012RFIn stock: 60
Material Stainless steel 302d - Wire diameter (in) 0.1969Di - Internal diameter (in) 1.0236L1 - Length (in) 3.1496L2 - Length (in) 1.4961
- 89104RFIn stock: 49
Material Stainless steel 302d - Wire diameter (in) 0.1969Di - Internal diameter (in) 1.1417L1 - Length (in) 3.3858L2 - Length (in) 1.6929
- 89016RFIn stock: 298
Material Stainless steel 302d - Wire diameter (in) 0.2362Di - Internal diameter (in) 1.2205L1 - Length (in) 4.0157L2 - Length (in) 1.9685
