Multiwave Compression Springs
Wide range of multi-wave compression springs in stainless spring steel
We’ll usually dispatch your order the same day with expected delivery within 2-4 days. This applies to all stocked multi-wave compression springs
See quantity discounts and prices by clicking on the shopping cart next to the required product.
With the help of our range sliders, you can navigate around our range of multi-wave compression springs quickly and easily. We have over 100 different dimensions in stock, ready for dispatch.
Multi-wave compression springs are made from stainless spring steel and have been designed for use in structures where it is not possible to use a “normal” compression spring due to lack of space.
The stainless spring steel allows our multi-wave compression springs to be used in both humid and dry environments.
Multi-wave compression springs cannot be custom-made.

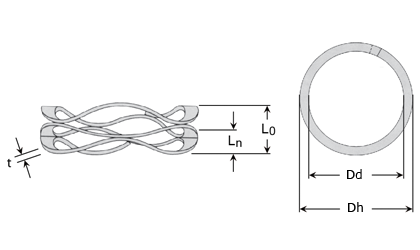

The internal and external dimensions (Dd and Dh) must not be confused with the typical internal and external dimensions (De and Di) familiar from conventional compression springs.
Maximum shaft (Dd): If a spring is placed over a shaft, the shaft’s external diameter must not exceed (Dd) in order for the spring to “work” unhindered. The spring’s actual internal dimensions are therefore always greater than the specified (Dd) value.
Minimum hole (Dh): If the spring is used in a hole, this is the minimum diameter the hole must be for the spring to “work” unhindered. The spring’s actual external dimensions are therefore always less than the specified (Dh) value.
| View prices - Add to Cart | Material | Dd Max shaft (in) |
Dh Min. hole (in) |
t Thickness (in) |
L0 Unloaded length (in) |
Ln Max. loaded length (in) |
Sn Maximum travel (in) |
Fn Maximum load at Ln (lbs) |
R Spring constant (lb/in) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0079 | 0.1496 | 0.0622 | 0.0874 | 4.0016 | 45.1101 | MW0375-0150-04S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0079 | 0.2520 | 0.1079 | 0.1441 | 4.0016 | 27.9797 | MW0375-0250-04S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0079 | 0.3504 | 0.1500 | 0.2004 | 4.0016 | 19.9855 | MW0375-0350-04S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0079 | 0.4488 | 0.1949 | 0.2539 | 4.0016 | 15.9884 | MW0375-0450-04S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0118 | 0.1496 | 0.0811 | 0.0685 | 6.9916 | 101.0695 | MW0375-0150-07S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0118 | 0.2520 | 0.1449 | 0.1071 | 6.9916 | 66.8087 | MW0375-0250-07S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0118 | 0.3504 | 0.2020 | 0.1484 | 6.9916 | 46.8232 | MW0375-0350-07S |
|
|
||||
| Stainless steel 17-7 PH | 0.2520 | 0.3740 | 0.0118 | 0.4488 | 0.2622 | 0.1866 | 6.9916 | 37.1159 | MW0375-0450-07S |
|
|
||||
| Stainless steel 17-7 PH | 0.2795 | 0.4370 | 0.0079 | 0.1654 | 0.0630 | 0.1024 | 4.0016 | 38.8290 | MW0437-0165-04S |
|
|
||||
| Stainless steel 17-7 PH | 0.2795 | 0.4370 | 0.0079 | 0.2756 | 0.1091 | 0.1665 | 4.0016 | 23.9826 | MW0437-0275-04S |
|
|
- MW0375-0150-04SIn stock: 553
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0079L0 - Unloaded length (in) 0.1496Ln - Max. loaded length (in) 0.0622Sn - Maximum travel (in) 0.0874Fn - Maximum load at Ln (lbs) 4.0016R - Spring constant (lb/in) 45.1101
- MW0375-0250-04SIn stock: 190
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0079L0 - Unloaded length (in) 0.2520Ln - Max. loaded length (in) 0.1079Sn - Maximum travel (in) 0.1441Fn - Maximum load at Ln (lbs) 4.0016R - Spring constant (lb/in) 27.9797
- MW0375-0350-04SIn stock: 414
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0079L0 - Unloaded length (in) 0.3504Ln - Max. loaded length (in) 0.1500Sn - Maximum travel (in) 0.2004Fn - Maximum load at Ln (lbs) 4.0016R - Spring constant (lb/in) 19.9855
- MW0375-0450-04SIn stock: 249
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0079L0 - Unloaded length (in) 0.4488Ln - Max. loaded length (in) 0.1949Sn - Maximum travel (in) 0.2539Fn - Maximum load at Ln (lbs) 4.0016R - Spring constant (lb/in) 15.9884
- MW0375-0150-07SIn stock: 159
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0118L0 - Unloaded length (in) 0.1496Ln - Max. loaded length (in) 0.0811Sn - Maximum travel (in) 0.0685Fn - Maximum load at Ln (lbs) 6.9916R - Spring constant (lb/in) 101.0695
- MW0375-0250-07SIn stock: 263
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0118L0 - Unloaded length (in) 0.2520Ln - Max. loaded length (in) 0.1449Sn - Maximum travel (in) 0.1071Fn - Maximum load at Ln (lbs) 6.9916R - Spring constant (lb/in) 66.8087
- MW0375-0350-07SIn stock: 45
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0118L0 - Unloaded length (in) 0.3504Ln - Max. loaded length (in) 0.2020Sn - Maximum travel (in) 0.1484Fn - Maximum load at Ln (lbs) 6.9916R - Spring constant (lb/in) 46.8232
- MW0375-0450-07SIn stock: 32
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2520Dh - Min. hole (in) 0.3740t - Thickness (in) 0.0118L0 - Unloaded length (in) 0.4488Ln - Max. loaded length (in) 0.2622Sn - Maximum travel (in) 0.1866Fn - Maximum load at Ln (lbs) 6.9916R - Spring constant (lb/in) 37.1159
- MW0437-0165-04SIn stock: 47
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2795Dh - Min. hole (in) 0.4370t - Thickness (in) 0.0079L0 - Unloaded length (in) 0.1654Ln - Max. loaded length (in) 0.0630Sn - Maximum travel (in) 0.1024Fn - Maximum load at Ln (lbs) 4.0016R - Spring constant (lb/in) 38.8290
- MW0437-0275-04SIn stock: 230
Material Stainless steel 17-7 PHDd - Max shaft (in) 0.2795Dh - Min. hole (in) 0.4370t - Thickness (in) 0.0079L0 - Unloaded length (in) 0.2756Ln - Max. loaded length (in) 0.1091Sn - Maximum travel (in) 0.1665Fn - Maximum load at Ln (lbs) 4.0016R - Spring constant (lb/in) 23.9826
Stainless steel:
17-7PH WERKSTOFF NR. 1.4542
Working temperature between -328 ºF and +664 ºF
If you want a PDF datasheet or a 3D CAD drawing of the spring in .step, .iges or .sat format, these can be downloaded for free by clicking on the 3D CAD symbol next to the item number in the table.
Thickness (t): +/- 0.002 "
Force (Fn): +/- 10 %
The service life of a spring is generally very difficult to define. A large number of parameters come into play, and it is therefore impossible to define a service life. Parameters with a significant influence on service life include: Installation, installation method, number of movements, vibrations, shocks, torsion, length of travel, non-axial travel, temperature, wear against other surfaces, environment of use, any cleaning agents, lateral impacts, etc.
Always dimension a spring so that it delivers the desired travel and force with as little exertion as possible. This will give the spring the longest possible service life. Applying the maximum load to the spring or exceeding it will shorten its service life and may cause it to become permanently distorted.
Therefore we recommend that you do not use more than 75% of the maximum travel (Sn) of conical springs.
