Stainless steel

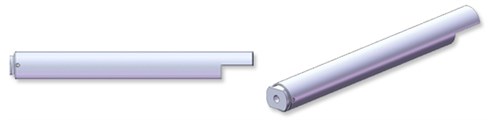

A locking tube is used as a safety device in structures with gas springs. The locking tube stops the gas spring closing unexpectedly. This may be in the event of a gust of wind, distortion of the gas spring, a leaking gasket, increased load on the structure, etc. You have to press the locking tube manually to be able to press the gas spring together. Locking tubes should always be used for safety where objects can hit people or structures and cause injury or damage.
Stainless steel locking tubes have the same dimensions as the black painted version. Our locking tubes can be used together with our selection of gas springs. If a locking tube is to be used in a dry environment, it is also possible to use the black painted version.
Note: Locking tubes can only be used together with gas springs with threads.
59-70023-description
Stainless steel 304
59-70024-description
Stainless steel 316
| View prices - Add to Cart | Material | Ø1 fits rod size (mm) |
Ø2 Fits cylinder (mm) |
L1 Fits stroke length (mm) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|---|
| Stainless steel 316 | 0.3150 | 0.7087 | 3.9370 | LTX-8-100-316 |
|
|
||||
| Stainless steel 316 | 0.3150 | 0.7087 | N/A | LTX-8-140-316 |
|
|
||||
| Stainless steel 316 | 0.3150 | 0.7087 | 5.9055 | LTX-8-150-316 |
|
|
||||
| Stainless steel 316 | 0.3150 | 0.7087 | 7.8740 | LTX-8-200-316 |
|
|
||||
| Stainless steel 316 | 0.3150 | 0.7087 | 9.8425 | LTX-8-250-316 |
|
|
||||
| Stainless steel 316 | 0.3937 | 0.9055 | 3.9370 | LTX-10-100-316 |
|
|
||||
| Stainless steel 316 | 0.3937 | 0.9055 | 5.9055 | LTX-10-150-316 |
|
|
||||
| Stainless steel 304 | 0.3937 | 0.9055 | 7.8740 | LTX-10-200 |
|
|
||||
| Stainless steel 316 | 0.3937 | 0.9055 | 7.8740 | LTX-10-200-316 |
|
|
||||
| Stainless steel 316 | 0.3937 | 0.9055 | 9.8425 | LTX-10-250-316 |
|
|
- LTX-8-100-316In stock: 38
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3150Ø2 - Fits cylinder (mm) 0.7087L1 - Fits stroke length (mm) 3.9370
- LTX-8-140-316In stock: 137
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3150Ø2 - Fits cylinder (mm) 0.7087L1 - Fits stroke length (mm) N/A
- LTX-8-150-316In stock: 23
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3150Ø2 - Fits cylinder (mm) 0.7087L1 - Fits stroke length (mm) 5.9055
- LTX-8-200-316In stock: 24
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3150Ø2 - Fits cylinder (mm) 0.7087L1 - Fits stroke length (mm) 7.8740
- LTX-8-250-316In stock: 9
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3150Ø2 - Fits cylinder (mm) 0.7087L1 - Fits stroke length (mm) 9.8425
- LTX-10-100-316In stock: 24
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3937Ø2 - Fits cylinder (mm) 0.9055L1 - Fits stroke length (mm) 3.9370
- LTX-10-150-316In stock: 16
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3937Ø2 - Fits cylinder (mm) 0.9055L1 - Fits stroke length (mm) 5.9055
- LTX-10-200In stock: 9
Material Stainless steel 304Ø1 - fits rod size (mm) 0.3937Ø2 - Fits cylinder (mm) 0.9055L1 - Fits stroke length (mm) 7.8740
- LTX-10-200-316In stock: 21
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3937Ø2 - Fits cylinder (mm) 0.9055L1 - Fits stroke length (mm) 7.8740
- LTX-10-250-316In stock: 0
Material Stainless steel 316Ø1 - fits rod size (mm) 0.3937Ø2 - Fits cylinder (mm) 0.9055L1 - Fits stroke length (mm) 9.8425
Stainless Steel 304
The locking tube ensures that external elements such as wind, collisions, impacts, etc. do not cause a gate, for example, to close accidentally, risking injury to people or damage to property.
The function of the locking tube is easily neutralised with just one push.
- When fitting the locking tube onto the gas spring it can be difficult to get the thread on the piston through the end piece of the locking tube. This is because of the spring-loaded end piece, which flips to the side to ensure correct spring function once.
- Press on the highest point of the end piece, and at the same time guide the piston through the hole in the end piece. Gas springs with a 6 mm piston are screwed into the end piece.
- The locking tube has now been fitted correctly, and the end fitting can be put on.
