Leaf springs

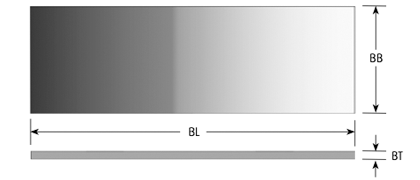

Technical drawing - Leaf springs

Leaf springs for fast delivery!

Leaf springs are stock items and are available for fast delivery. Buy your Leaf spring from our online shop now!

Leaf springs from stock. This serie of leaf springs are intended for prototypes or just a few pieces made of strip steel.



Shop By
Shopping Options
BT - Leaf thickness (in)
BB - Leaf width (in)
BL - Leaf Length (in)

Items 1-10 of 126

Set Descending Direction
View prices - Add to Cart Material BT
Leaf thickness (in)
BB
Leaf width (in)
BL
Leaf Length (in)
SKU Stock Tech Drawing Read More 3D CAD
Stainless steel 302 0.0039 0.3937 3.9370 BF1104 BF1104
Stainless steel 302 0.0039 0.3937 11.8110 BF1104-300 BF1104-300
Stainless steel 302 0.0039 0.5906 3.9370 BF1108 BF1108
Stainless steel 302 0.0039 0.5906 11.8110 BF1108-300 BF1108-300
Stainless steel 302 0.0039 0.7874 3.9370 BF1112 BF1112
Stainless steel 302 0.0039 0.7874 11.8110 BF1112-300 BF1112-300
Stainless steel 302 0.0039 0.9843 3.9370 BF1116 BF1116
Stainless steel 302 0.0039 0.9843 11.8110 BF1116-300 BF1116-300
Stainless steel 302 0.0039 1.1811 3.9370 BF1120 BF1120
Stainless steel 302 0.0039 1.1811 11.8110 BF1120-300 BF1120-300
  1. BF1104
    In stock: 274
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.3937
    BL - Leaf Length (in) 3.9370
  2. BF1104-300
    In stock: 0
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.3937
    BL - Leaf Length (in) 11.8110
  3. BF1108
    In stock: 201
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.5906
    BL - Leaf Length (in) 3.9370
  4. BF1108-300
    In stock: 0
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.5906
    BL - Leaf Length (in) 11.8110
  5. BF1112
    In stock: 220
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.7874
    BL - Leaf Length (in) 3.9370
  6. BF1112-300
    In stock: 0
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.7874
    BL - Leaf Length (in) 11.8110
  7. BF1116
    In stock: 149
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.9843
    BL - Leaf Length (in) 3.9370
  8. BF1116-300
    In stock: 0
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 0.9843
    BL - Leaf Length (in) 11.8110
  9. BF1120
    In stock: 218
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 1.1811
    BL - Leaf Length (in) 3.9370
  10. BF1120-300
    In stock: 0
    Material Stainless steel 302
    BT - Leaf thickness (in) 0.0039
    BB - Leaf width (in) 1.1811
    BL - Leaf Length (in) 11.8110
Page
per page
Material

Spring-hard strip steel EN 10151-1.4310

Description

This range of leaf springs in spring-hard strip steel is designed for use in the production of prototypes or just a few items that have to be bent.

The range is divided into various widths and thicknesses, so you can buy various dimensions to experiment with, etc. The whole range is the same length, 100 mm. Lengths up to 300 mm can be supplied on special order.

If there is a leaf spring you want a quote for, please send your prototype or create a drawing with complete dimensions.
