Technical drawing - Eye fittings
:Brackets
Ball stud Ø10
Ø13
Ø16

Bracket with ball Ø10
Ø13
Ø16

U bracket Ø8



Bracket with mandrel Ø4
Ø6
Ø8

:End-fittings
Ball joint M4
M6
M8
M10
Ball socket M6
M8
M10

Extension M6
M8
M10

Clevis M4
M6
M8
M10
Show more Show less

101-70083-description

Aluminium

101-70030-description

Galvanized steel

101-70084-description

Plastic

101-70023-description

Stainless steel 304

101-70024-description

Stainless steel 316
Shop By
Shopping Options
IT - Internal thread (in)
A - Center length (in)
H - Hole Diameter (in)
T - Eye Thickness (in)
Max. force - Comp. gas spring (lbs)
Max. force - Extension gas springs (lbs)
Material

Items 1-10 of 99

Set Descending Direction
View prices - Add to Cart Material IT
Internal thread (in)		 A
Center length (in)		 H
Hole Diameter (in)		 T
Eye Thickness (in)		 Max. force
Comp. gas spring (lbs)		 Max. force
Extension gas springs (lbs)		 SKU Stock Tech Drawing Read More 3D CAD
Galvanized steel 0.1575 0.4724 0.1614 0.1575 22.4809 22.4809 EF-E059Z EF-E059Z
Galvanized steel 0.2362 0.5118 0.3346 0.3937 146.1258 146.1258 EF-E038Z EF-E038Z
Stainless steel 304 0.2362 0.6299 0.2402 0.3150 269.7707 269.7707 EF-E052S EF-E052S
Galvanized steel 0.2362 0.6299 0.2402 0.3150 269.7707 269.7707 EF-E052Z EF-E052Z
Stainless steel 304 0.2362 0.6299 0.3189 0.3150 269.7707 269.7707 EF-E053S EF-E053S
Galvanized steel 0.2362 0.6299 0.3189 0.3150 269.7707 269.7707 EF-E053Z EF-E053Z
Stainless steel 304 0.2362 0.6299 0.3976 0.3937 146.1258 146.1258 EF-E060S EF-E060S
Galvanized steel 0.2362 0.6299 0.3976 0.3937 146.1258 146.1258 EF-E060Z EF-E060Z
Stainless steel 316 0.2362 0.6299 0.3976 0.3937 146.1258 146.1258 EF-E060S-316 EF-E060S-316
Stainless steel 304 0.2362 0.7087 0.2402 0.2362 146.1258 146.1258 EF-E035S EF-E035S
  1. EF-E059Z
    In stock: 2,677
    EF-E059Z
    Material Galvanized steel
    IT - Internal thread (in) 0.1575
    A - Center length (in) 0.4724
    H - Hole Diameter (in) 0.1614
    T - Eye Thickness (in) 0.1575
    Max. force - Comp. gas spring (lbs) 22.4809
    Max. force - Extension gas springs (lbs) 22.4809
  2. EF-E038Z
    In stock: 2,212
    EF-E038Z
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.5118
    H - Hole Diameter (in) 0.3346
    T - Eye Thickness (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258
  3. EF-E052S
    In stock: 373
    EF-E052S
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.2402
    T - Eye Thickness (in) 0.3150
    Max. force - Comp. gas spring (lbs) 269.7707
    Max. force - Extension gas springs (lbs) 269.7707
  4. EF-E052Z
    In stock: 1,491
    EF-E052Z
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.2402
    T - Eye Thickness (in) 0.3150
    Max. force - Comp. gas spring (lbs) 269.7707
    Max. force - Extension gas springs (lbs) 269.7707
  5. EF-E053S
    In stock: 0
    EF-E053S
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.3189
    T - Eye Thickness (in) 0.3150
    Max. force - Comp. gas spring (lbs) 269.7707
    Max. force - Extension gas springs (lbs) 269.7707
  6. EF-E053Z
    In stock: 1,828
    EF-E053Z
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.3189
    T - Eye Thickness (in) 0.3150
    Max. force - Comp. gas spring (lbs) 269.7707
    Max. force - Extension gas springs (lbs) 269.7707
  7. EF-E060S
    In stock: 1,106
    EF-E060S
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.3976
    T - Eye Thickness (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258

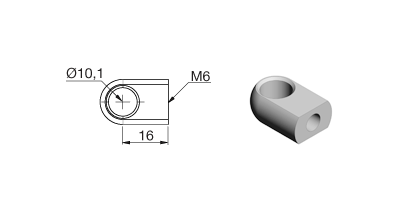

  8. EF-E060Z
    In stock: 1,707
    EF-E060Z
    Material Galvanized steel
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.3976
    T - Eye Thickness (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258
  9. EF-E060S-316
    In stock: 635
    EF-E060S-316
    Material Stainless steel 316
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.6299
    H - Hole Diameter (in) 0.3976
    T - Eye Thickness (in) 0.3937
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258
  10. EF-E035S
    In stock: 1,662
    EF-E035S
    Material Stainless steel 304
    IT - Internal thread (in) 0.2362
    A - Center length (in) 0.7087
    H - Hole Diameter (in) 0.2402
    T - Eye Thickness (in) 0.2362
    Max. force - Comp. gas spring (lbs) 146.1258
    Max. force - Extension gas springs (lbs) 146.1258
