Constant force spring in metal box
Enclosed constant force springs can be incorporated directly into the structure. This type of constant force spring is made from strips of stainless steel (type 302), and the spring will maintain a constant force over its whole extension. The required spring tension can be increased or reduced by rotating the adjustment unit clockwise or anti-clockwise
Shop By
Shopping Options
| View prices - Add to Cart | Min Min. Adjustable force (lb) |
Max Max. Adjustable force (lb) |
E Extension (in) |
SKU | Stock | Tech Drawing | Read More | 3D CAD | |
|---|---|---|---|---|---|---|---|---|---|
| 1.9842 | 3.9683 | 38.9764 | KF100 |
|
|||||
| 1.9842 | 3.9683 | 38.9764 | KF101 |
|
|||||
| 2.8660 | 4.8502 | 38.9764 | KF102 |
|
|||||
| 2.8660 | 4.8502 | 38.9764 | KF103 |
|
|||||
| 3.9683 | 6.6139 | 38.9764 | KF104 |
|
|||||
| 3.9683 | 6.6139 | 38.9764 | KF105 |
|
|||||
| 4.8502 | 7.9366 | 38.9764 | KF106 |
|
|||||
| 4.8502 | 7.9366 | 38.9764 | KF107 |
|
|||||
| 6.6139 | 8.8185 | 38.9764 | KF108 |
|
|||||
| 6.6139 | 9.4799 | 38.9764 | KF109 |
|
- KF100In stock: 7
Min - Min. Adjustable force (lb) 1.9842Max - Max. Adjustable force (lb) 3.9683E - Extension (in) 38.9764
- KF101In stock: 10
Min - Min. Adjustable force (lb) 1.9842Max - Max. Adjustable force (lb) 3.9683E - Extension (in) 38.9764
- KF102In stock: 10
Min - Min. Adjustable force (lb) 2.8660Max - Max. Adjustable force (lb) 4.8502E - Extension (in) 38.9764
- KF103In stock: 10
Min - Min. Adjustable force (lb) 2.8660Max - Max. Adjustable force (lb) 4.8502E - Extension (in) 38.9764
- KF104In stock: 13
Min - Min. Adjustable force (lb) 3.9683Max - Max. Adjustable force (lb) 6.6139E - Extension (in) 38.9764
- KF105In stock: 28
Min - Min. Adjustable force (lb) 3.9683Max - Max. Adjustable force (lb) 6.6139E - Extension (in) 38.9764
- KF106In stock: 6
Min - Min. Adjustable force (lb) 4.8502Max - Max. Adjustable force (lb) 7.9366E - Extension (in) 38.9764
- KF107In stock: 49
Min - Min. Adjustable force (lb) 4.8502Max - Max. Adjustable force (lb) 7.9366E - Extension (in) 38.9764
- KF108In stock: 20
Min - Min. Adjustable force (lb) 6.6139Max - Max. Adjustable force (lb) 8.8185E - Extension (in) 38.9764
- KF109In stock: 21
Min - Min. Adjustable force (lb) 6.6139Max - Max. Adjustable force (lb) 9.4799E - Extension (in) 38.9764
Material
Stainless steel tape extension in galvanised house.
Description

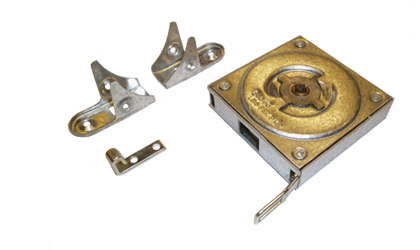

SODEMANN INDUSTRIFJEDRE A/S can offer a compact, adjustable, inexpensive, yet extremely useful constant force spring. The constant force spring is housed in a galvanised case with stainless steel tape extension.
Comes with attachment fittings. The dimensions of the case is 84mm * 84mm * 25mm All springs have a maximum extension of 990mm
The hole in the middle measures 6.9mm x 6.9mm x 20mm.
Travel
All standard types have a maximum extension of 990 mm - but only have a constant force over the first 609 mm.
Winding direction

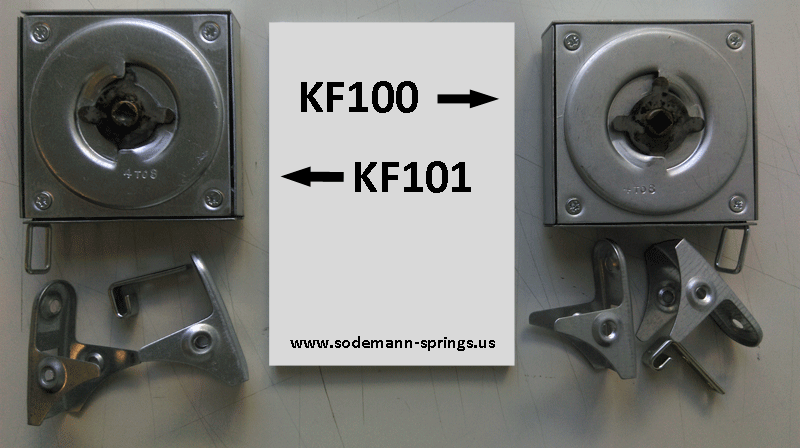

Stock no. "KF100" = right-handed version
Stock no. "KF101" = left-handed version
Fitting and use
- Adjustments can only be made when the strip is extended to its maximum travel
- The unit is lubricated and requires no further maintenance
- Extension must always be straight - never in a way that allows the strip to scrape against the casing, for example
- The strip must not be allowed to return uncontrolled into the casing
- The strip must not be painted
- All adjustments must be made with a 1/4 rotation
The required spring tension can be increased or reduced by rotating the adjustment unit clockwise or anti-clockwise.
